CANCELLOUS SCREW - Full thread
|
|
|

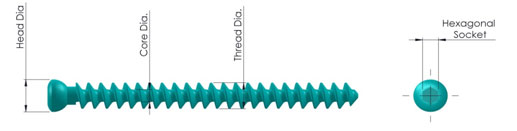

| CANCELLOUS SCREW - Full thread |
|
|
|
|
| |
THREAD DIA. |
CORE DIA. |
HEAD DIA |
HEXAGONAL SOCKET |
TPI |
| 4.0mm Cancellous Screw - Full Thread |
4.0mm |
1.90mm |
6.0mm |
2.50mm |
14 |
| 6.50mm Cancellous Screw - Full Thread |
6.50mm |
3.0mm |
8.0mm |
3.50mm |
9 |
|
|
|
| |
|
|
|
| 4.0mm CANCELLOUS SCREW - Full thread
|
|
| TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
| 10mm |
1.014.010 |
22mm |
1.014.022 |
40mm |
1.014.040 |
| 12mm |
1.014.012 |
24mm |
1.014.024 |
45mm |
1.014.045 |
| 14mm |
1.014.014 |
26mm |
1.014.026 |
50mm |
1.014.050 |
| 16mm |
1.014.016 |
28mm |
1.014.028 |
55mm |
1.014.055 |
| 18mm |
1.014.018 |
30mm |
1.014.030 |
60mm |
1.014.060 |
| 20mm |
1.014.020 |
35mm |
1.014.035 |
|
|
| IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.1.014.010
|
|
|
| |
|
|
|
| 6.50mm Cancellous Screw - Full Thread
|
|
| TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
| 25mm |
1.015.025 |
55mm |
1.015.055 |
85mm |
1.015.085 |
| 30mm |
1.015.030 |
60mm |
1.015.060 |
90mm |
1.015.090 |
| 35mm |
1.015.035 |
65mm |
1.015.065 |
95mm |
1.015.095 |
| 40mm |
1.015.040 |
70mm |
1.015.070 |
100mm |
1.015.100 |
| 45mm |
1.015.045 |
75mm |
1.015.075 |
105mm |
1.015.105 |
| 50mm |
1.015.050 |
80mm |
1.015.080 |
110mm |
1.015.110 |
| IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.1.015.025
|
|
|
| |
|
