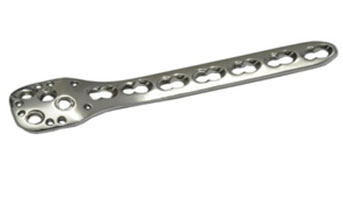

| LOCKING PROXIMAL HUMERUS PLATE (LPHP) |
|
|
.jpg) |
| Thickness |
: |
2.20mm |
| Width |
: |
12.0mm |
| Locking Hole Dia. |
: |
4.30mm |
| Supporting Hole Dia. |
: |
4.50mm |
| Hole to Hole distance |
: |
12.0mm |
| Available Material |
: |
S.S.316L / Titanium |
|
|
|
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
5 Holes |
2.034.005 |
87 |
8 Holes |
2.034.008 |
123 |
6 Holes |
2.034.006 |
99 |
9 Holes |
2.034.009 |
135 |
7 Holes |
2.034.007 |
111 |
10 Holes |
2.034.010 |
147 |
IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.2.034.005 |
|
|
|
| |
|
| |
|

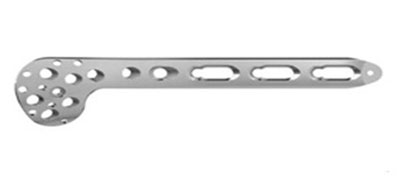

| LOCKING PERIARTICULAR PROXIMAL HUMERUS PLATE 3.50mm |
|
|
 |
| Thickness |
: |
2.20mm |
| Width |
: |
24.0mm |
| Hole Dia |
: |
7.0mm |
| Available Material |
: |
S.S.316L /Titanium |
|
|
|
NO. OF HOLES |
CATALOGUE NO. (RIGHT) |
CATALOGUE NO. (LEFT) |
TOTAL LENGTH |
3 Holes |
2.035.003 |
2.035.103 |
99mm |
5 Holes |
2.035.005 |
2.035.105 |
123mm |
7 Holes |
2.035.007 |
2.035.107 |
147mm |
9 Holes |
2.035.009 |
2.035.109 |
171mm |
IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.2.034.005 |
|
|
|
| |
|
