FRONT THREADED PIN (SCHANZ PIN)

THREADED GUIDE WIRE

FRONT THREADED PIN (SCHANZ PIN)

CANCELLOUS FRONT THREADED PIN

CENTRALLY THREADED PIN

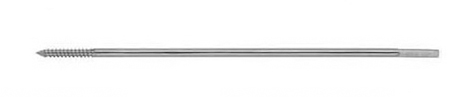

FRONT THREADED PIN (SCHANZ PIN)

2.50mm FRONT THREADED PIN (SCHANZ PIN)

TOTAL TENGTH	100mm	150mm
THREAD LENGTH	12mm	16mm
CATALOGUE NO.	3.009.001	3.009.002

3.0mm FRONT THREADED PIN (SCHANZ PIN)

TOTAL TENGTH	100mm	150mm
THREAD LENGTH	14mm	18mm
CATALOGUE NO.	3.010.001	3.010.002

3.50mm FRONT THREADED PIN (SCHANZ PIN)

TOTAL TENGTH	100mm	150mm
THREAD LENGTH	14mm	18mm
CATALOGUE NO.	3.011.001	3.011.002

4.0mm FRONT THREADED PIN (SCHANZ PIN)

TOTAL TENGTH	120mm	125mm	150mm	150mm	175mm	180mm	200mm
THREAD LENGTH	16mm	18mm	16mm	32mm	25mm	32mm	32mm
CATALOGUE NO.	3.012.001	3.012.002	3.012.003	3.012.004	3.012.005	3.012.006	3.012.007

4.50mm FRONT THREADED PIN (SCHANZ PIN)

TOTAL TENGTH	125mm	150mm	150mm	150mm	175mm	175mm	175mm	175mm
THREAD LENGTH	32mm	18mm	25mm	32mm	18mm	25mm	32mm	40mm
CATALOGUE NO.	3.013.001	3.013.002	3.013.003	3.013.004	3.013.005	3.013.006	3.013.007	3.013.008
TOTAL TENGTH	200mm	200mm	200mm	225mm	225mm	225mm
THREAD LENGTH	25mm	32mm	40mm	25mm	32mm	40mm
CATALOGUE NO.	3.013.009	3.013.010	3.013.011	3.013.012	3.013.013	3.013.014

5.0mm FRONT THREADED PIN (SCHANZ PIN)

TOTAL TENGTH	125mm	150mm	150mm	150mm	175mm	175mm	175mm	175mm
THREAD LENGTH	50mm	18mm	25mm	50mm	25mm	35mm	40mm	50mm
CATALOGUE NO.	3.014.001	3.014.002	3.014.003	3.014.004	3.014.005	3.014.006	3.014.007	3.014.008
TOTAL TENGTH	200mm	200mm	200mm	200mm	225mm	225mm	225mm	225mm
THREAD LENGTH	25mm	35mm	40mm	50mm	25mm	35mm	40mm	50mm
CATALOGUE NO.	3.014.009	3.014.010	3.014.011	3.014.012	3.014.013	3.014.014	3.014.015	3.014.016

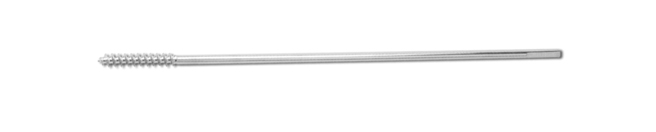

CANCELLOUS FRONT THREADED PIN

6.50mm CANCELLOUS FRONT THREADED PIN

TOTAL TENGTH	150mm	150mm	175mm	180mm	200mm
THREAD LENGTH	16mm	32mm	25mm	32mm	32mm
CATALOGUE NO.	3.015.001	3.015.002	3.015.003	3.015.004	3.015.005
