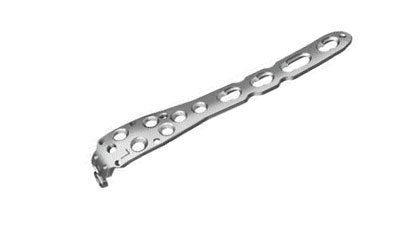

| LOCKING OLECRANON PLATE 3.50 / 4.0mm
|
|
|
 |
| Thickness |
: |
3.0mm |
| Width |
: |
10.0mm |
| Locking Hole Dia. |
: |
4.30mm |
| Supporting Hole Dia. |
: |
4.50mm
|
| Hole to Hole distance |
: |
13.0mm |
| Available Material |
: |
S.S.316L /Titanium |
|
|
|
NO. OF HOLES |
CATALOGUE NO. (RIGHT) |
CATALOGUE NO. (LEFT) |
TOTAL LENGTH |
3 Holes |
2.044.003 |
2.044.103 |
99mm |
5 Holes |
2.044.005 |
2.044.105 |
125mm |
7 Holes |
2.044.007 |
2.044.107 |
151mm |
9 Holes |
2.044.009 |
2.044.109 |
177mm |
IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.2.044.003
|
|
|
|
| |
|
|
|

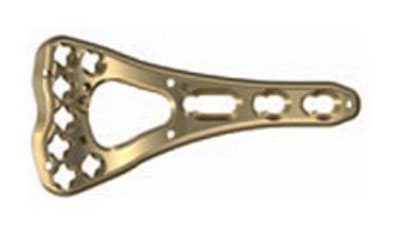

| LOCKING VOLAR PLATE 2.70mm
|
|
|
 |
| Thickness |
: |
2.80 / 2.0mm
|
| Width |
: |
8.0.0mm |
| Locking Hole Dia. |
: |
2.90mm |
| Supporting Hole Dia. |
: |
2.90mm
|
| Hole to Hole distance |
: |
9.0mm |
| Available Material |
: |
S.S.316L /Titanium |
|
|
|
NO. OF HOLES |
CATALOGUE NO. (RIGHT) |
CATALOGUE NO. (LEFT) |
TOTAL LENGTH |
2 Holes |
2.045.002 |
2.045.102 |
47mm |
3 Holes |
2.045.003 |
2.045.103 |
56mm |
4 Holes |
2.045.004 |
2.045.104 |
68mm |
5 Holes |
2.045.005 |
2.045.105 |
77mm |
IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.2.045.002
|
|
|
|
| |
|
