| TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
| 50mm |
1.029.050 |
85mm |
1.029.085 |
120mm |
1.029.120 |
| 55mm |
1.029.055 |
90mm |
1.029.090 |
125mm |
1.029.125 |
| 60mm |
1.029.060 |
95mm |
1.029.095 |
130mm |
1.029.130 |
| 65mm |
1.029.065 |
100mm |
1.029.100 |
135mm |
1.029.135 |
| 70mm |
1.029.070 |
105mm |
1.029.105 |
140mm |
1.029.140 |
| 75mm |
1.029.075 |
110mm |
1.029.110 |
145mm |
1.029.145 |
| 80mm |
1.029.080 |
115mm |
1.029.115 |
|
|
|
| IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.1.029.010 |
|
|
| |
|
|
|

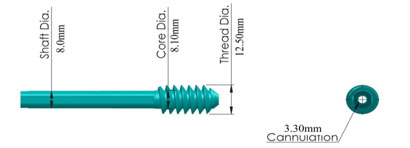

| DHS / DCS COMPRESSION SCREW |
|
|
| TOTAL LENGTH |
CATALOGUE NO. |
THREAD DIA. |
CORE DIA. |
HEAD DIA |
HEXAGONAL SOCKET |
| 36mm |
1.030.036 |
3.80 |
2.80 |
9.0 |
3.5 |
| IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.1.030.036 |
|
|
| |
|
|
|
|
| TOTAL LENGTH |
CATALOGUE NO. |
THREAD LENGTH |
TOTAL LENGTH |
CATALOGUE NO. |
THREAD LENGTH |
| 25mm |
1.031.025 |
12.0mm |
55mm |
1.031.055 |
26.0mm |
| 30mm |
1.031.030 |
15.0mm |
60mm |
1.031.060 |
28.0mm |
| 35mm |
1.031.035 |
18.0mm |
65mm |
1.031.065 |
30.0mm |
| 40mm |
1.031.040 |
20.0mm |
70mm |
1.031.070 |
32.0mm |
| 45mm |
1.031.045 |
22.0mm |
75mm |
1.031.075 |
34.0mm |
| 50mm |
1.031.050 |
24.0mm |
80mm |
1.031.080 |
36.0mm |
| IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.1.031.025 |
|
|
| |
|
|
|
|
| THREAD DIA. "A" |
THREAD DIA. |
SHAFT DIA. |
HEXAGONAL SOCKET |
CANNULATION |
| 4.50mm |
3.50mm |
2.5 |
2.50 |
1.3 |
| TOTAL LENGTH |
CATALOGUE NO. |
THREAD LENGTH A/B |
TOTAL LENGTH |
CATALOGUE NO. |
THREAD LENGTH A/B |
| 14mm |
1.032.014 |
5.30/5.30mm |
24mm |
1.031.024 |
6.50/6.30mm |
| 16mm |
1.032.016 |
5.30/5.30mm |
26mm |
1.031.026 |
7.0/6.50mm |
| 18mm |
1.032.018 |
6.30/6.30mm |
28mm |
1.031.028 |
7.0/6.50mm |
| 20mm |
1.032.020 |
6.30/6.30mm |
30mm |
1.031.030 |
7.0/6.50mm |
| 22mm |
1.032.022 |
6.30/6.30mm |
|
|
|
| IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.1.032.014 |
|
|
| |
