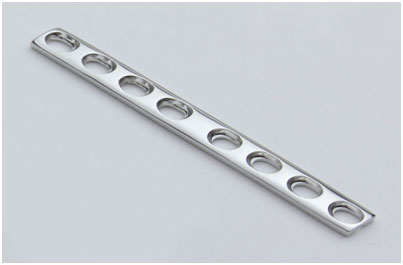

| DCP SMALL PLATE 3.5mm (THICK-3.0mm) |
|
|
 |
| Thickness |
: |
3.0mm |
| Width |
: |
10.0mm |
| DCP hole |
: |
4.50 x 6.50mm |
| Hole to Hole distance |
: |
12mm |
| Available Material |
: |
S.S.316L /Titanium |
|
|
|
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
| 2 Holes |
2.001.002 |
26mm |
9 Holes |
2.001.009 |
110mm |
| 3 Holes |
2.001.003 |
38mm |
10 Holes |
2.001.010 |
122mm |
| 4 Holes |
2.001.004 |
50mm |
11 Holes |
2.001.011 |
134mm |
| 5 Holes |
2.001.005 |
62mm |
12 Holes |
2.001.012 |
146mm |
| 6 Holes |
2.001.006 |
74mm |
|
|
|
| 7 Holes |
2.001.007 |
86mm |
|
|
|
| 8 Holes |
2.001.008 |
98mm |
|
|
|
IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.2.021.003
|
|
|
|
| |
|
|
|
| DCP SMALL PLATE 3.5mm (THICK-3.50mm) |
|
|
|
| Thickness |
: |
3.0mm |
| Width |
: |
10.0mm |
| DCP hole |
: |
4.50 x 6.50mm |
| Hole to Hole distance |
: |
12mm |
| Available Material |
: |
S.S.316L / Titanium |
|
|
|
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
| 2 Holes |
2.001.002 |
26mm |
9 Holes |
2.001.009 |
110mm |
| 3 Holes |
2.001.003 |
38mm |
10 Holes |
2.001.010 |
122mm |
| 4 Holes |
2.001.004 |
50mm |
11 Holes |
2.001.011 |
134mm |
| 5 Holes |
2.001.005 |
62mm |
12 Holes |
2.001.012 |
146mm |
| 6 Holes |
2.001.006 |
74mm |
|
|
|
| 7 Holes |
2.001.007 |
86mm |
|
|
|
| 8 Holes |
2.001.008 |
98mm |
|
|
|
IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.2.022.003
|
|
|
|
| |
|
