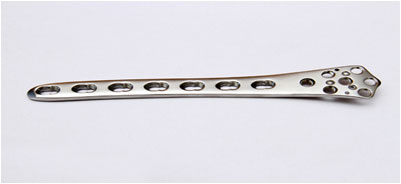

| LOCKING DISTAL FEMUR PLATE 4.50 / 5.0mm |
|
|
 |
| Thickness |
: |
5.0mm |
| Width |
: |
16.0mm |
| Locking Hole Dia. |
: |
5.30mm |
| Supporting Hole Dia. |
: |
5.50mm |
| Hole to Hole distance |
: |
20.0mm |
| Available Material |
: |
S.S.316L /Titanium |
|
|
|
NO. OF HOLES |
CATALOGUE NO. (RIGHT) |
CATALOGUE NO. (LEFT) |
TOTAL LENGTH |
5 Holes |
2.052.005 |
2.052.105 |
156mm |
7 Holes |
2.052.007 |
2.052.107 |
196mm |
9 Holes |
2.052.009 |
2.052.109 |
236mm |
11Holes |
2.052.011 |
2.052.111 |
276mm |
13Holes |
2.052.013 |
2.052.113 |
316mm |
IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.2.052.005 |
|
|
|
| |
|
|
|

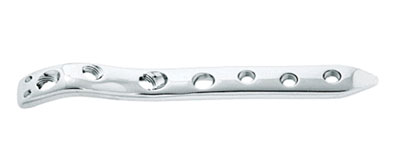

| LOCKING PROXIMAL FEMUR PLATE 4.50 / 5.0mm/ 7.0mm |
|
|
 |
| Thickness |
: |
5.50mm |
| Width |
: |
17.50mm |
| Locking Hole Dia |
: |
5.30mm / 7.20mm |
| Supporting Hole Dia |
: |
5.50mm |
| Hole to Hole distance |
: |
18.0mm |
| Available Material |
: |
S.S.316L /Titanium |
|
|
|
NO. OF HOLES |
CATALOGUE NO. (RIGHT) |
CATALOGUE NO. (LEFT) |
TOTAL LENGTH |
5 Holes |
2.053.005 |
2.053.105 |
169mm |
7 Holes |
2.053.007 |
2.053.107 |
205mm |
9 Holes |
2.053.009 |
2.053.109 |
241mm |
11Holes |
2.053.011 |
2.053.111 |
277mm |
13 Holes |
2.053.013 |
2.053.113 |
313mm |
IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.2.053.005 |
|
|
|
| |
|
