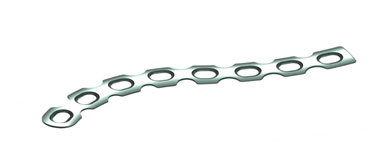

| CLAVICAL PLATE 3.5mm
|
|
|
 |
| Thickness |
: |
2.20mm |
| Width |
: |
10.0mm |
| DCP Hole |
: |
4.50 x 8.0mm |
| Round Hole Dia. |
: |
4.50mm
|
| Available Material |
: |
S.S.316L /Titanium |
|
|
|
NO. OF HOLES |
CATALOGUE NO. (RIGHT) |
CATALOGUE NO. (LEFT) |
TOTAL LENGTH |
4 Holes |
2.048.004 |
2.048.104 |
47mm |
6 Holes |
2.048.006 |
2.048.106 |
75mm |
8 Holes |
2.048.008 |
2.048.108 |
94mm |
10 Holes |
2.048.010 |
2.048.110 |
121mm |
IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.2.048.004
|
|
|
|
| |
|
|
|

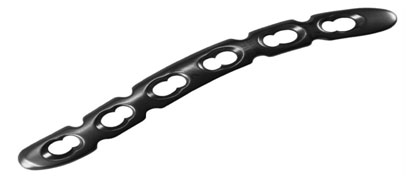

| LOCKING CLAVICAL PLATE 3.5mm |
|
|
 |
| Thickness |
: |
3.50mm |
| Width |
: |
11.0mm |
| Locking Hole Dia. |
: |
4.30mm |
| Supporting Hole Dia. |
: |
4.50mm
|
| Hole to Hole distance |
: |
15.0mm |
| Available Material |
: |
S.S.316L /Titanium |
|
|
|
NO. OF HOLES |
CATALOGUE NO. (RIGHT) |
CATALOGUE NO. (LEFT) |
TOTAL LENGTH |
4 Holes |
2.050.004 |
2.050.104 |
66mm |
5 Holes |
2.050.005 |
2.050.105 |
81.50mm |
6 Holes |
2.050.006 |
2.050.106 |
97mm |
7 Holes |
2.050.007 |
2.050.107 |
112.0mm |
8 Holes |
2.050.008 |
2.050.108 |
128mm |
IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.2.051.005
|
|
|
|
| |
|
