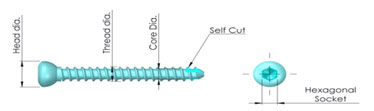

| CORTICAL SCREW SELF TAPPING |
|
|
|
|
| |
THREAD DIA. |
CORE DIA. |
HEAD DIA |
HEXAGONAL SOCKET |
TPI |
| 2.70mm Cortical Screw Self Tapping |
2.70mm |
1.90mm |
5.0mm |
2.50mm |
24 |
| 3.50mm Cortical Screw Self Tapping |
3.50mm |
2.40mm |
6.0mm |
2.50mm |
20 |
| 4.50mm Cortical Screw Self Tapping |
4.50mm |
3.0mm |
8.0mm |
3.50mm |
14 |
|
|
|
| |
|
|
|
| 2.70mm CORTICAL SCREW SELF TAPPING
|
|
| TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
| 6mm |
1.005.006 |
18mm |
1.005.018 |
30mm |
1.005.030 |
| 8mm |
1.005.008 |
20mm |
1.005.020 |
32mm |
1.005.032 |
| 10mm |
1.005.010 |
22mm |
1.005.022 |
34mm |
1.005.034 |
| 12mm |
1.005.012 |
24mm |
1.005.024 |
36mm |
1.005.036 |
| 14mm |
1.005.014 |
26mm |
1.005.026 |
38mm |
1.005.038 |
| 16mm |
1.005.016 |
28mm |
1.005.028 |
40mm |
1.005.040 |
| IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.1.005.006
|
|
|
| |
|
|
|
| 3.50mm CORTICAL SCREW SELF TAPPING
|
|
| TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
| 10mm |
1.006.010 |
24mm |
1.006.024 |
38mm |
1.006.038 |
| 12mm |
1.006.012 |
26mm |
1.006.026 |
40mm |
1.006.040 |
| 14mm |
1.006.014 |
28mm |
1.006.028 |
42mm |
1.006.042 |
| 16mm |
1.006.016 |
30mm |
1.006.030 |
45mm |
1.006.044 |
| 18mm |
1.006.018 |
32mm |
1.006.032 |
50mm |
1.006.046 |
| 20mm |
1.006.020 |
34mm |
1.006.034 |
55mm |
1.006.048 |
| 22mm |
1.006.022 |
36mm |
1.006.036 |
60mm |
1.006.050 |
| IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.1.006.010
|
|
|
| |
|
|
|
| 4.50mm CORTICAL SCREW SELF TAPPING
|
|
| TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
| 14mm |
1.007.014 |
36mm |
1.007.036 |
58mm |
1.007.058 |
| 16mm |
1.007.016 |
38mm |
1.007.038 |
60mm |
1.007.060 |
| 18mm |
1.007.018 |
40mm |
1.007.040 |
62mm |
1.007.062 |
| 20mm |
1.007.020 |
42mm |
1.007.042 |
64mm |
1.007.064 |
| 22mm |
1.007.022 |
44mm |
1.007.044 |
66mm |
1.007.066 |
| 24mm |
1.007.024 |
46mm |
1.007.046 |
68mm |
1.007.068 |
| 26mm |
1.007.026 |
48mm |
1.007.048 |
70mm |
1.007.070 |
| 28mm |
1.007.028 |
50mm |
1.007.050 |
72mm |
1.007.072 |
| 30mm |
1.007.030 |
52mm |
1.007.052 |
74mm |
1.007.074 |
| 32mm |
1.007.032 |
54mm |
1.007.054 |
|
|
| 34mm |
1.007.034 |
56mm |
1.007.056 |
|
|
| IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.1.007.014
|
|
|
| |
