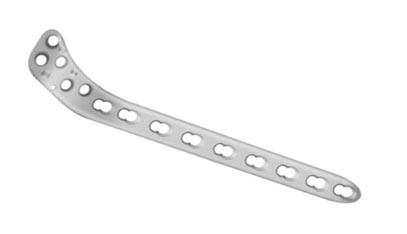

| LOCKING LATERAL TIBIA PLATE 4.50 / 5.0mm
|
|
|
 |
| Thickness |
: |
5.50mm |
| Width |
: |
16.0mm |
| Locking Hole Dia |
: |
5.30mm |
| Supporting Hole Dia |
: |
5.50mm |
| Hole to Hole distance |
: |
20.0mm |
| Available Material |
: |
S.S.316L /Titanium |
|
|
|
NO. OF HOLES |
CATALOGUE NO. (RIGHT) |
CATALOGUE NO. (LEFT) |
TOTAL LENGTH |
5 Holes |
2.054.005 |
2.054.105 |
144mm |
7 Holes |
2.054.007 |
2.054.107 |
184mm |
9 Holes |
2.054.009 |
2.054.109 |
224mm |
11Holes |
2.054.011 |
2.054.111 |
264mm |
13 Holes |
2.054.013 |
2.054.113 |
304mm |
IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.2.054.005
|
|
|
|
| |
|
| |
|

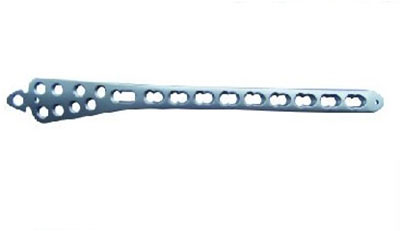

| LOCKING DISTAL TIBIA MEDIAL PLATE 3.5 / 4.0mm |
|
|
 |
| • |
Thickness |
: |
4.0mm |
| • |
Width |
: |
13.0mm |
| • |
Locking Hole Dia |
: |
4.30mm |
| • |
Supporting Hole Dia |
: |
4.50mm |
| • |
Hole to Hole distance |
: |
13.0mm |
| • |
Available Material |
: |
S.S.316L / Titanium |
|
|
|
NO. OF HOLES |
CATALOGUE NO. (RIGHT) |
CATALOGUE NO. (LEFT) |
TOTAL LENGTH |
5 Holes |
2.056.005 |
2.056.105 |
144mm |
7 Holes |
2.056.007 |
2.056.107 |
184mm |
9 Holes |
2.056.009 |
2.056.109 |
224mm |
11Holes |
2.056.011 |
2.056.111 |
264mm |
IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.2.056.005
|
|
|
|
| |
|
