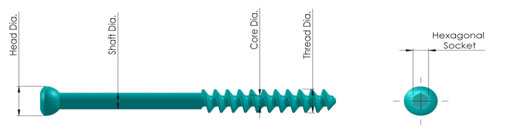

| CANCELLOUS SCREW - Short thread |
|
|
|
|
|
THREAD DIA. |
CORE DIA. |
HEAD DIA |
HEXAGONAL SOCKET |
TPI |
| 4.0mm Cancellous Screw - Short Thread |
4.0mm |
1.90mm |
6.0mm |
2.50mm |
14 |
| 6.50mm Cancellous Screw - 16mm Thread |
6.50mm |
3.0mm |
8.0mm |
3.50mm |
9 |
| 6.50mm Cancellous Screw - 32mm Thread |
6.50mm |
3.0mm |
8.0mm |
3.50mm |
9 |
|
|
|
| |
|
|
|
| 4.0mm CANCELLOUS SCREW - Short thread
|
|
| TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
| 10mm |
1.011.010 |
22mm |
1.011.022 |
40mm |
1.011.040 |
| 12mm |
1.011.012 |
24mm |
1.011.024 |
45mm |
1.011.045 |
| 14mm |
1.011.014 |
26mm |
1.011.026 |
50mm |
1.011.050 |
| 16mm |
1.011.016 |
28mm |
1.011.028 |
55mm |
1.011.055 |
| 18mm |
1.011.018 |
30mm |
1.011.030 |
60mm |
1.011.060 |
| 20mm |
1.011.020 |
35mm |
1.011.035 |
|
|
| IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.1.011.010 |
|
|
| |
|
|
|
| 6.50mm Cancellous Screw - 16mm Thread
|
|
| TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
| 30.0 |
1.012.030 |
60.0 |
1.012.060 |
90.0 |
1.012.090 |
| 35.0 |
1.012.035 |
65.0 |
1.012.065 |
95.0 |
1.012.095 |
| 40.0 |
1.012.040 |
70.0 |
1.012.070 |
100.0 |
1.012.100 |
| 45.0 |
1.012.045 |
75.0 |
1.012.075 |
105.0 |
1.012.105 |
| 50.0 |
1.012.050 |
80.0 |
1.012.080 |
110.0 |
1.012.110 |
| 55.0 |
1.012.055 |
85.0 |
1.012.085 |
|
|
| IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.1.012.030
|
|
|
| |
|
|
|
| 6.50mm Cancellous Screw - 32mm Thread
|
|
| TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
| 40.0 |
1.013.040 |
70.0 |
1.012.070 |
100.0 |
1.012.100 |
| 45.0 |
1.013.045 |
75.0 |
1.012.075 |
105.0 |
1.012.105 |
| 50.0 |
1.013.050 |
80.0 |
1.012.080 |
110.0 |
1.012.110 |
| 55.0 |
1.013.055 |
85.0 |
1.012.085 |
|
|
| 60.0 |
1.013.060 |
90.0 |
1.012.090 |
|
|
| 65.0 |
1.013.065 |
95.0 |
1.012.095 |
|
|
| IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.1.013.040
|
|
|
| |
