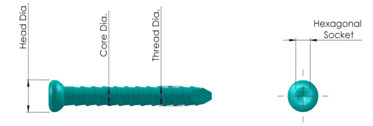

| LOCKING BOLT |
|
|
|
|
| |
THREAD DIA. |
CORE DIA. |
HEAD DIA |
HEXAGONAL SOCKET |
TPI |
| 3.40mm Locking Bolt |
3.40mm |
2.80mm |
7.90mm |
3.50mm |
12 |
| 3.90mm Locking Bolt |
3.90mm |
3.40mm |
7.90mm |
3.50mm |
12 |
| 4.90mm Locking Bolt |
4.90mm |
4.30mm |
7.90mm |
3.50mm |
9 |
|
|
|
| |
|
|
|
|
| TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
| 20mm |
1.020.020 |
34mm |
1.020.034 |
48mm |
1.020.048 |
| 22mm |
1.020.022 |
36mm |
1.020.036 |
50mm |
1.020.050 |
| 24mm |
1.020.024 |
38mm |
1.020.038 |
52mm |
1.020.052 |
| 26mm |
1.020.026 |
40mm |
1.020.040 |
54mm |
1.020.054 |
| 28mm |
1.020.028 |
42mm |
1.020.042 |
56mm |
1.020.056 |
| 30mm |
1.020.030 |
44mm |
1.020.044 |
58mm |
1.020.058 |
| 32mm |
1.020.032 |
46mm |
1.020.046 |
60mm |
1.020.060 |
| IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.1.020.020
|
|
|
| |
|
|
|
|
| TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
| 20mm |
1.021.020 |
34mm |
1.021.034 |
48mm |
1.021.048 |
| 22mm |
1.021.022 |
36mm |
1.021.036 |
50mm |
1.021.050 |
| 24mm |
1.021.024 |
38mm |
1.021.038 |
52mm |
1.021.052 |
| 26mm |
1.021.026 |
40mm |
1.021.040 |
54mm |
1.021.054 |
| 28mm |
1.021.028 |
42mm |
1.021.042 |
56mm |
1.021.056 |
| 30mm |
1.021.030 |
44mm |
1.021.044 |
58mm |
1.021.058 |
| 32mm |
1.021.032 |
46mm |
1.021.046 |
60mm |
1.021.060 |
| IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.1.017.020
|
|
|
| |
|
|
|
| 4.90mm LOCKING BOLT |
| TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
| 24mm |
1.022.024 |
42mm |
1.022.042 |
60mm |
1.022.060 |
| 26mm |
1.022.026 |
44mm |
1.022.044 |
65mm |
1.022.065 |
| 28mm |
1.022.028 |
46mm |
1.022.046 |
70mm |
1.022.070 |
| 30mm |
1.022.030 |
48mm |
1.022.048 |
75mm |
1.022.075 |
| 32mm |
1.022.032 |
50mm |
1.022.050 |
80mm |
1.022.080 |
| 34mm |
1.022.034 |
52mm |
1.022.052 |
85mm |
1.022.085 |
| 36mm |
1.022.036 |
54mm |
1.022.054 |
90mm |
1.022.090 |
| 38mm |
1.022.038 |
56mm |
1.022.056 |
95mm |
1.022.095 |
| 40mm |
1.022.040 |
58mm |
1.022.058 |
100mm |
1.022.100 |
| IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.1.022.024
|
|
|
| |
|
|
|

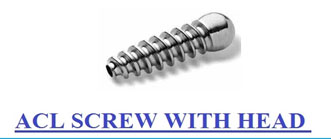

| ACL SCREW WITH HEAD |
|
| ACL SCREW WITH HEAD |
| 8.0mm Dia. |
9.0mm Dia. |
10.0mm Dia. |
|
|
| TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
| 20mm |
1.023.020 |
20mm |
1.024.020 |
20mm |
1.025.020 |
| 25mm |
1.023.025 |
25mm |
1.024.025 |
25mm |
1.025.025 |
| 30mm |
1.023.030 |
30mm |
1.024.030 |
30mm |
1.025.030 |
| 35mm |
1.023.035 |
35mm |
1.024.035 |
35mm |
1.025.035 |
| 40mm |
1.023.040 |
40mm |
1.024.040 |
40mm |
1.025.040 |
| IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.1.023.020
|
|
|
| |
|
|
|

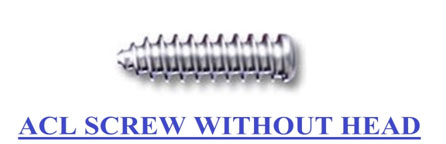

| ACL SCREW WITHOUT HEAD |
|
| ACL SCREW WITHOUT HEAD |
| 8.0mm Dia. |
9.0mm Dia. |
10.0mm Dia. |
|
|
| TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
| 20mm |
1.026.020 |
20mm |
1.027.020 |
20mm |
1.028.020 |
| 25mm |
1.026.025 |
25mm |
1.027.025 |
25mm |
1.028.025 |
| 30mm |
1.026.030 |
30mm |
1.027.030 |
30mm |
1.028.030 |
| 35mm |
1.026.035 |
35mm |
1.027.035 |
35mm |
1.028.035 |
| 40mm |
1.026.040 |
40mm |
1.027.040 |
40mm |
1.028.040 |
| IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.1.026.020
|
|
|
| |
