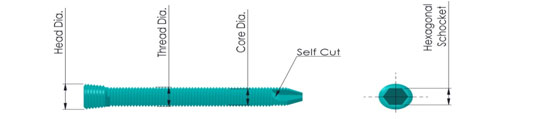

| LOCKING HEAD SELF TAPPING SCREW
|
|
|
|
|
|
THREAD DIA. |
CORE DIA. |
HEAD DIA |
HEXAGONAL SOCKET |
TPI |
| 2.70mmLocking Head screw |
2.70mm |
1.90mm |
3.50mm |
2.0mm |
48 |
| 3.50mmLocking Head screw |
3.50mm |
2.60mm |
4.80mm |
2.50mm |
32 |
| 5.0mmLocking Head screw |
5.0mm |
4.30mm |
6.80mm |
3.50mm |
26 |
|
|
|
| |
|
|
|
| 2.70mm LOCKING HEAD SELF TAPPING SCREW
|
|
| TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
| 10mm |
1.009.010 |
22mm |
1.009.022 |
40.0 |
1.009.040 |
| 12mm |
1.009.012 |
24mm |
1.009.024 |
45.0 |
1.009.045 |
| 14mm |
1.009.014 |
26mm |
1.009.026 |
50.0 |
1.009.050 |
| 16mm |
1.009.016 |
28mm |
1.009.028 |
55.0 |
1.009.055 |
| 18mm |
1.009.018 |
30mm |
1.009.030 |
60.0 |
1.009.060 |
| 20mm |
1.009.020 |
35mm |
1.009.035 |
|
|
| IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.1.008.010
|
|
|
| |
|
|
|
| 3.50mm LOCKING HEAD SELF TAPPING SCREW
|
|
| TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
| 10mm |
1.009.010 |
22mm |
1.009.022 |
40.0 |
1.009.040 |
| 12mm |
1.009.012 |
24mm |
1.009.024 |
45.0 |
1.009.045 |
| 14mm |
1.009.014 |
26mm |
1.009.026 |
50.0 |
1.009.050 |
| 16mm |
1.009.016 |
28mm |
1.009.028 |
55.0 |
1.009.055 |
| 18mm |
1.009.018 |
30mm |
1.009.030 |
60.0 |
1.009.060 |
| 20mm |
1.009.020 |
35mm |
1.009.035 |
|
|
| IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.1.009.010 |
|
|
| |
|
|
|
| 5.0mm LOCKING HEAD SELF TAPPING SCREW
|
|
| TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
| 14mm |
1.010.014 |
32mm |
1.010.030 |
50mm |
1.010.050 |
| 16mm |
1.010.016 |
34mm |
1.010.032 |
55mm |
1.010.055 |
| 18mm |
1.010.018 |
36mm |
1.010.034 |
60mm |
1.010.060 |
| 20mm |
1.010.020 |
38mm |
1.010.038 |
65mm |
1.010.065 |
| 22mm |
1.010.022 |
40mm |
1.010.040 |
70mm |
1.010.070 |
| 24mm |
1.010.024 |
42mm |
1.010.042 |
75mm |
1.010.075 |
| 26mm |
1.010.024 |
44mm |
1.010.044 |
80mm |
1.010.080 |
| 28mm |
1.010.026 |
46mm |
1.010.046 |
85mm |
1.010.085 |
| 30mm |
1.010.028 |
48mm |
1.010.048 |
90mm |
1.010.090 |
| IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.1.010.014
|
|
|
| |
