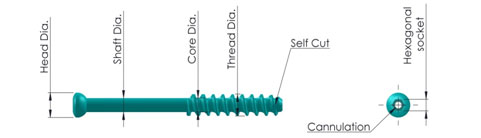

| CANNULATED CANCELLOUS SCREW |
|
|
|
|
| |
THREAD DIA. |
CORE DIA. |
HEAD DIA |
HEXAGONAL SOCKET |
CANNULATION |
| 4.0mm Cannulated Cancellous Screw - Full Thread |
4.0mm |
2.60mm |
6.0mm |
2.50mm |
1.40mm |
| 4.0mm Cannulated Cancellous Screw - Short Thread |
4.0mm |
2.60mm |
6.0mm |
2.50mm |
1.40mm |
| 7.0mm Cannulated Cancellous Screw -16mm / 32mm Thread |
7.0mm |
4.50mm |
8.0mm |
3.50mm |
2.20mm |
|
|
| |
|
|
|
| 4.0mm CANNULATED CANCELLOUS SCREW - Full Thread |
|
| TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
| 10mm |
1.016.010 |
26mm |
1.016.026 |
42mm |
1.016.042 |
| 12mm |
1.016.012 |
28mm |
1.016.028 |
44mm |
1.016.044 |
| 14mm |
1.016.014 |
30mm |
1.016.030 |
46mm |
1.016.046 |
| 16mm |
1.016.016 |
32mm |
1.016.032 |
48mm |
1.016.048 |
| 18mm |
1.016.018 |
34mm |
1.016.034 |
50mm |
1.016.050 |
| 20mm |
1.016.020 |
36mm |
1.016.036 |
55mm |
1.016.055 |
| 22mm |
1.016.022 |
38mm |
1.016.038 |
60mm |
1.016.060 |
| 24mm |
1.016.024 |
40mm |
1.016.040 |
|
|
| IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.1.016.010
|
|
|
| |
|
|
|
| 4.0mm CANNULATED CANCELLOUS SCREW - Short Thread
|
|
| TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
| 10mm |
1.017.010 |
26mm |
1.017.026 |
42mm |
1.017.042 |
| 12mm |
1.017.012 |
28mm |
1.017.028 |
44mm |
1.017.044 |
| 14mm |
1.017.014 |
30mm |
1.017.030 |
46mm |
1.017.046 |
| 16mm |
1.017.016 |
32mm |
1.017.032 |
48mm |
1.017.048 |
| 18mm |
1.017.018 |
34mm |
1.017.034 |
50mm |
1.017.050 |
| 20mm |
1.017.020 |
36mm |
1.017.036 |
55mm |
1.017.052 |
| 22mm |
1.017.022 |
38mm |
1.017.038 |
60mm |
1.017.054 |
| 24mm |
1.017.024 |
40mm |
1.017.040 |
|
|
| IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.1.017.010
|
|
|
| |
|
|
|
| 7.0mm CANNULATED CANCELLOUS SCREW - 16mm Thread
|
|
| TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
| 30mm |
1.018.030 |
65mm |
1.018.065 |
100mm |
1.018.100 |
| 35mm |
1.018.035 |
70mm |
1.018.070 |
105mm |
1.018.105 |
| 40mm |
1.018.040 |
75mm |
1.018.075 |
110mm |
1.018.110 |
| 45mm |
1.018.045 |
80mm |
1.018.080 |
115mm |
1.018.115 |
| 50mm |
1.018.050 |
85mm |
1.018.085 |
120mm |
1.018.120 |
| 55mm |
1.018.055 |
90mm |
1.018.090 |
|
|
| 60mm |
1.018.060 |
95mm |
1.018.095 |
|
|
| IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.1.018.010
|
|
| |
|
|
|
| 7.0mm CANNULATED CANCELLOUS SCREW - 32mm Thread
|
|
| TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
TOTAL LENGTH |
CATALOGUE NO. |
| 30mm |
1.019.030 |
65mm |
1.019.065 |
100mm |
1.019.100 |
| 35mm |
1.019.035 |
70mm |
1.019.070 |
105mm |
1.019.105 |
| 40mm |
1.019.040 |
75mm |
1.019.075 |
110mm |
1.019.110 |
| 45mm |
1.019.045 |
80mm |
1.019.080 |
115mm |
1.019.115 |
| 50mm |
1.019.050 |
85mm |
1.019.085 |
120mm |
1.019.120 |
| 55mm |
1.019.055 |
90mm |
1.019.090 |
|
|
| 60mm |
1.019.060 |
95mm |
1.019.095 |
|
|
| IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.1.019.010
|
|
|
|
| |
