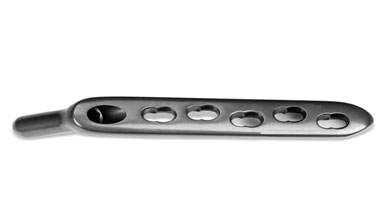

| LOCKING DHS PLATE - LONG BARREL 135°
|
|
|
 |
| Thickness |
: |
6.0mm |
| Width |
: |
19.0mm |
| Barrel Length |
: |
38mm |
| Locking Hole Dia. |
: |
5.30mm |
| Supporting Hole Dia. |
: |
5..50mm |
| Hole to Hole distance |
: |
16.0mm |
| Available Material |
: |
S.S.316L /Titanium |
|
|
|
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
3 Holes |
2.031.003 |
78mm |
8 Holes |
2.031.008 |
158mm |
4 Holes |
2.031.004 |
94mm |
9 Holes |
2.031.009 |
174mm |
5 Holes |
2.031.005 |
110mm |
10 Holes |
2.031.010 |
190mm |
6 Holes |
2.031.006 |
126mm |
11 Holes |
2.031.011 |
206mm |
7 Holes |
2.031.007 |
142mm |
12 Holes |
2.031.012 |
222mm |
IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.2.031.003
|
|
|
|
| |
|
|
|

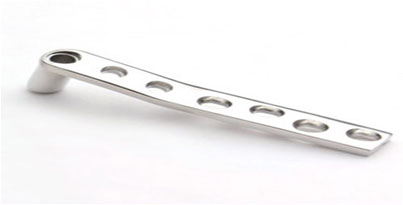

| DCS PLATE 4.50mm - 95°
|
|
|
 |
| Thickness |
: |
6.0mm |
| Width |
: |
16.0mm |
| Barrel Length |
: |
26mm |
| DCP Hole Dia. |
: |
5.50 x 8.50mm |
| Hole to Hole distance |
: |
16.0mm |
| Available Material |
: |
S.S.316L /Titanium |
|
|
|
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
5 Holes |
2.032.005 |
98mm |
11 Holes |
2.032.011 |
194mm |
6 Holes |
2.032.006 |
114mm |
12 Holes |
2.032.012 |
210mm |
7 Holes |
2.032.007 |
130mm |
14 Holes |
2.032.014 |
242mm |
8 Holes |
2.032.008 |
146mm |
16 Holes |
2.032.016 |
274mm |
9 Holes |
2.032.009 |
162mm |
18 Holes |
2.032.018 |
306mm |
10 Holes |
2.032.010 |
178mm |
|
|
|
IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.2.032.005
|
|
|
|
| |
|
