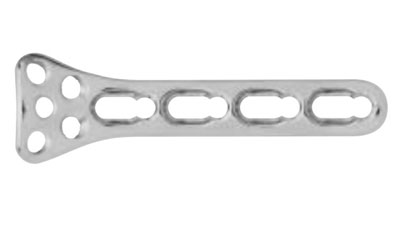

| LOCKING PROXIMAL HEAD PLATE 2.70mm - NECK
|
|
|
 |
| Thickness |
: |
2.0mm |
| Width |
: |
8.0.0mm |
| Locking Hole Dia. |
: |
2.90mm |
| Supporting Hole Dia. |
: |
2.90mm
|
| Hole to Hole distance |
: |
9.0mm |
| Available Material |
: |
S.S.316L /Titanium |
|
|
|
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
2 Holes |
2.046.002 |
32mm |
4 Holes |
2.046.004 |
52mm |
3 Holes |
2.046.003 |
42mm |
5 Holes |
2.046.005 |
62mm |
IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.2.046.002
|
|
|
|
| |
|
|
|

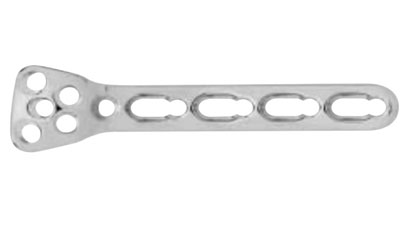

| LOCKING PROXIMAL HEAD PLATE 2.70mm - RIM
|
|
|
 |
| Thickness |
: |
2.0mm |
| Width |
: |
8.0mm |
| Locking Hole Dia. |
: |
2.90mm |
| Supporting Hole Dia. |
: |
2.90mm
|
| Hole to Hole distance |
: |
9.0mm |
| Available Material |
: |
S.S.316L /Titanium |
|
|
|
NO. OF HOLES |
CATALOGUE NO. (RIGHT) |
CATALOGUE NO. (LEFT) |
TOTAL LENGTH |
2 Holes |
2.047.002 |
2.047.102 |
35 |
3 Holes |
2.047.003 |
2.047.103 |
44 |
4 Holes |
2.047.004 |
2.047.104 |
53 |
5 Holes |
2.047.005 |
2.047.105 |
62 |
IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.2.047.002
|
|
|
|
| |
|
