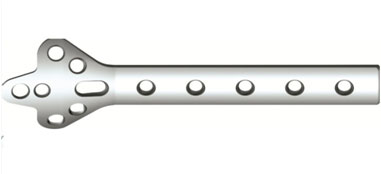

| CLOVERLEAF PLATE 3.50mm |
|
|
 |
| Thickness |
: |
4.0mm |
| Width |
: |
12.0mm |
| Locking Hole Dia. |
: |
4.20mm |
| Supporting Hole Dia. |
: |
4.50mm |
| Hole to Hole distance |
: |
12.0mm |
| Available Material |
: |
S.S.316L / Titanium |
|
|
|
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
5 Holes |
2.034.005 |
87 |
8 Holes |
2.034.008 |
123 |
6 Holes |
2.034.006 |
99 |
9 Holes |
2.034.009 |
135 |
7 Holes |
2.034.007 |
111 |
10 Holes |
2.034.010 |
147 |
IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.2.034.005 |
|
|
|
| |
|
|

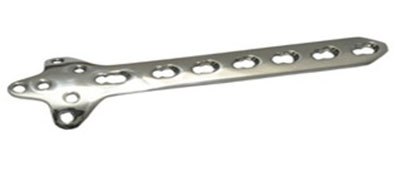

| LOCKING CLOVERLEAF PLATE 3.50mm |
|
|
 |
| Thickness |
: |
2.0mm |
| Width |
: |
15.0mm |
| Locking Hole Dia |
: |
4.30mm |
| Supporting Hole Dia.
|
: |
4.50mm |
| Hole to Hole distance
|
: |
16.0mm |
| Available Material |
: |
S.S.316L /Titanium |
|
|
|
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
3 Holes |
2.037.003 |
88 |
7 Holes |
2.037.007 |
152 |
4 Holes |
2.037.004 |
104 |
8 Holes |
2.037.008 |
168 |
5 Holes |
2.037.005 |
120 |
9 Holes |
2.037.009 |
184 |
6 Holes |
2.037.006 |
136 |
10 Holes |
2.037.010 |
200 |
IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.2.037.003
|
|
|
|
| |
|
