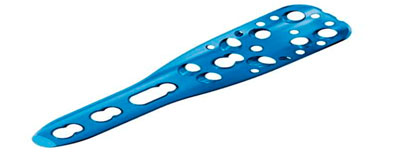

| LOCKING PROXIMAL HUMERAL MULTIANGLE (PHILOS) PLATE 3.50mm SHORT |
|
|
-PLATE-3.50mm-SHORT.jpg) |
| Thickness |
: |
4.0mm |
| Width |
: |
11.0mm |
| Locking Hole Dia |
: |
4.20mm |
| Supporting Hole Dia. |
: |
4.50mm |
| Hole to Hole distance |
: |
11.0mm |
| Available Material |
: |
S.S.316L /Titanium |
|
|
|
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
3 Holes |
2.038.003 |
90mm |
5 Holes |
2.038.005 |
114mm |
IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.2.038.003
|
|
|
|
| |
|
| |
|

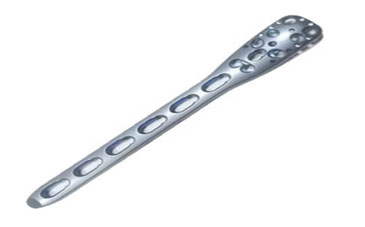

| LOCKING PROXIMAL HUMERAL MULTIANGLE (PHILOS) PLATE 3.50mm - LONG |
|
|
-PLATE-3.50mm---LONG.jpg) |
| Thickness |
: |
4.0mm |
| Width |
: |
11.0mm |
| Locking Hole Dia. |
: |
4.20mm |
| Supporting Hole Dia. |
: |
4.50mm
|
| Hole to Hole distance |
: |
11.0mm |
| Available Material |
: |
S.S.316L /Titanium |
|
|
|
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
5 Holes |
2.039.005 |
141 |
10 Holes |
2.039.010 |
231 |
6 Holes |
2.039.006 |
159 |
11 Holes |
2.039.011 |
249 |
7 Holes |
2.039.007 |
177 |
12 Holes |
2.039.012 |
267 |
8 Holes |
2.039.008 |
195 |
|
|
|
9 Holes |
2.039.009 |
213 |
|
|
|
IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.2.039.005 |
|
|
|
| |
|
