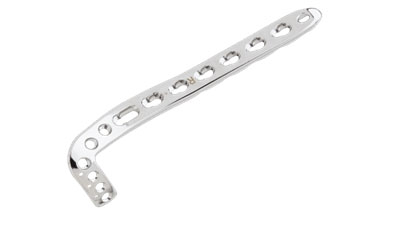

| LOCKING ANTEROLATERAL DISTAL TIBIA PLATE 3.5 / 4.0mm
|
|
|
 |
| • |
Thickness |
: |
4.0mm |
| • |
Width |
: |
13.0mm |
| • |
Locking Hole Dia |
: |
4.30mm |
| • |
Supporting Hole Dia |
: |
4.50mm |
| • |
Hole to Hole distance |
: |
13.0mm |
| • |
Available Material |
: |
S.S.316L / Titanium |
|
|
|
NO. OF HOLES |
CATALOGUE NO. (RIGHT) |
CATALOGUE NO. (LEFT) |
TOTAL LENGTH |
5 Holes |
2.056.005 |
2.056.105 |
144mm |
7 Holes |
2.056.007 |
2.056.107 |
184mm |
9 Holes |
2.056.009 |
2.056.109 |
224mm |
11Holes |
2.056.011 |
2.056.111 |
264mm |
IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.2.056.005
|
|
|
|
| |
|
| |
|

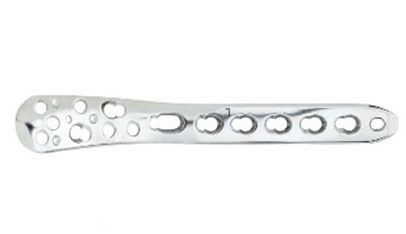

| LOCKING LOW BEND MEDIAL DISTAL TIBIA PLATE 3.5 / 4.0mm |
|
|
 |
| • |
Thickness |
: |
3.0mm |
| • |
Width |
: |
13.0mm |
| • |
Locking Hole Dia |
: |
4.20mm |
| • |
Supporting Hole Dia |
: |
4.50mm |
| • |
Hole to Hole distance |
: |
13.0mm |
| • |
Available Material |
: |
S.S.316L / Titanium |
|
|
|
NO. OF HOLES |
CATALOGUE NO. (RIGHT) |
CATALOGUE NO. (LEFT) |
TOTAL LENGTH |
4 Holes |
2.057.004 |
2.057.104 |
109mm |
6 Holes |
2.057.006 |
2.057.106 |
135mm |
8 Holes |
2.057.008 |
2.057.108 |
161mm |
10 Holes |
2.057.010 |
2.057.110 |
187mm |
12 Holes |
2.057.012 |
2.057.112 |
213mm |
14 Holes |
2.057.014 |
2.056.114 |
239mm |
IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.2.057.004
|
|
|
|
| |
|
