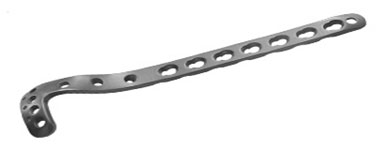

| LOCKING PROXIMAL TIBIA PLATE 3.5 / 4.0mm - RAFT
|
|
|
 |
| • |
Thickness |
: |
4.0mm |
| • |
Width |
: |
11.0mm |
| • |
Locking Hole Dia |
: |
4.20mm |
| • |
Supporting Hole Dia |
: |
4.50mm |
| • |
Hole to Hole distance |
: |
12.0mm |
| • |
Available Material |
: |
S.S.316L / Titanium |
|
|
|
NO. OF HOLES |
CATALOGUE NO. (RIGHT) |
CATALOGUE NO. (LEFT) |
TOTAL LENGTH |
5 Holes |
2.058.005 |
2.058.105 |
129mm |
7 Holes |
2.058.007 |
2.058.107 |
153mm |
9 Holes |
2.058.009 |
2.058.109 |
177mm |
11Holes |
2.058.011 |
2.058.111 |
201mm |
IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.2.058.005
|
|
|
|
| |
|
| |
|

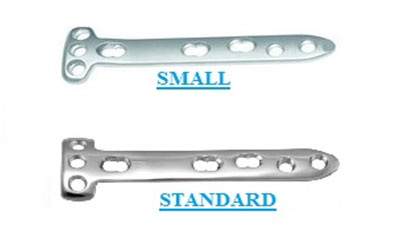

| LOCKING MEDIAL HIGH TIBIAL OSTETOMY PLATE 3.50mm |
|
|
 |
| |
NO. Of Holes |
: |
5 Holes |
| • |
Thickness |
: |
1.20mm |
| |
Width |
: |
14mm / 16.0mm |
| |
Locking Hole Dia. |
: |
5.30mm |
| • |
SupportingHole Dia |
: |
5.50mm |
| • |
Available Material |
: |
S.S.316L / Titanium |
|
|
|
SIZE |
CATALOGUE NO. |
TOTAL LENGTH |
SIZE |
CATALOGUE NO. |
TOTAL LENGTH |
SMALL |
2.059.005 |
115mm |
STANDARD |
2.059.105 |
112mm |
IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.2.059.005
|
|
|
|
| |
|
