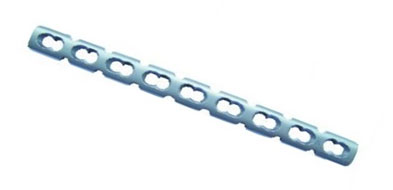

| LOCKING RECONSTRUCTION PLATE 4.50mm / 5.0mm |
|
|
 |
| • |
Thickness |
: |
3.50mm |
| • |
Width |
: |
12.0mm |
| • |
Locking Hole Dia |
: |
5.30mm |
| • |
Supporting Hole Dia |
|
5.50mm |
| • |
Hole to Hole distance |
: |
19.0mm |
| • |
Available Material |
: |
S.S.316L / Titanium |
|
|
|
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
| 3 Holes |
2.018.003 |
56mm |
10 Holes |
2.018.010 |
189mm |
| 4 Holes |
2.018.004 |
75mm |
11 Holes |
2.018.011 |
208mm |
| 5 Holes |
2.018.006 |
94mm |
12 Holes |
2.018.012 |
227mm |
| 6 Holes |
2.018.006 |
113mm |
13 Holes |
2.018.013 |
246mm |
| 7 Holes |
2.018.007 |
132mm |
14 Holes |
2.018.014 |
265mm |
| 8 Holes |
2.018.008 |
151mm |
15 Holes |
2.018.015 |
284mm |
| 9 Holes |
2.018.009 |
170mm |
16 Holes |
2.018.016 |
303mm |
IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.2.018.003 |
|
|
|
| |
|
