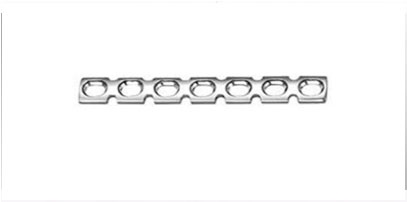

| STRAIGHT RECONSTRUCTION PLATE 4.5mm |
|
|
 |
| • |
Thickness |
: |
3.0mm |
| • |
Width |
: |
12.0mm |
| • |
Locking Hole Dia |
: |
5.50 x 7.50mm |
| • |
Hole to Hole distance |
|
16mm |
| • |
Available Material |
: |
S.S.316L / Titanium |
|
|
|
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
| 4 Holes |
2.016.004 |
61mm |
12 Holes |
2.016.012 |
189mm |
| 5 Holes |
2.016.005 |
77mm |
14 Holes |
2.016.014 |
221mm |
| 6 Holes |
2.016.006 |
93mm |
16 Holes |
2.016.016 |
253mm |
| 7 Holes |
2.016.007 |
109mm |
18 Holes |
2.016.018 |
285mm |
| 8 Holes |
2.016.008 |
125mm |
20 Holes |
2.016.020 |
317mm |
| 9 Holes |
2.016.009 |
141mm |
|
|
|
| 10 Holes |
2.016.010 |
157mm |
|
|
|
IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.2.016.004 |
|
|
|
| |
|
| |
|

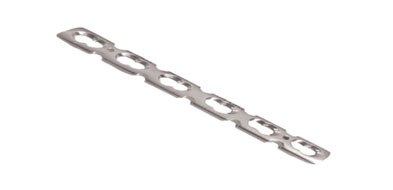

| LOCKING RECONSTRUCTION PLATE 3.5mm |
|
|
 |
| • |
Thickness |
: |
3.0mm |
| • |
Width |
: |
10.0mm |
| • |
Locking Hole Dia |
: |
4.20mm |
| • |
Supporting Hole Dia |
|
4.50mm |
| • |
Hole to Hole distance |
: |
14.50mm |
| • |
Available Material |
: |
S.S.316L / Titanium |
|
|
|
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
| 5 Holes |
2.017.005 |
71mm |
12 Holes |
2.017.012 |
172.5mm |
| 6 Holes |
2.017.006 |
85.5mm |
14 Holes |
2.017.014 |
201.5mm |
| 7 Holes |
2.017.007 |
100mm |
16 Holes |
2.017.016 |
230.5mm |
| 8 Holes |
2.017.008 |
114.5mm |
18 Holes |
2.017.018 |
259.5mm |
| 9 Holes |
2.017.009 |
129mm |
20 Holes |
2.017.020 |
288.5mm |
| 10 Holes |
2.017.010 |
143.5mm |
22 Holes |
2.017.022 |
317.5mm |
| 11 Holes |
2.017.011 |
158mm |
|
|
|
IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.2.017.005 |
|
|
|
| |
|
