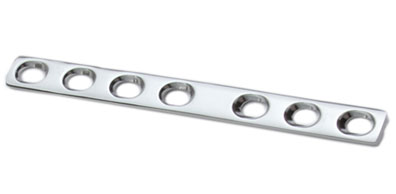

| DCP NARROW PLATE 4.5mm |
|
|
 |
| • |
Thickness |
: |
4.0mm |
| • |
Width |
: |
12.0mm |
| • |
DCP hole |
: |
5.50 x 8.50mm |
| • |
Hole to Hole distance |
: |
16mm |
| • |
Available Material |
: |
S.S.316L /Titanium |
|
|
|
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
| 4 Holes |
2.003.004 |
71mm |
11 Holes |
2.003.011 |
183mm |
| 5 Holes |
2.003.005 |
87mm |
12 Holes |
2.003.012 |
199mm |
| 6 Holes |
2.003.006 |
103mm |
13 Holes |
2.003.013 |
215mm |
| 7 Holes |
2.003.007 |
119mm |
14 Holes |
2.003.014 |
231mm |
| 8 Holes |
2.003.008 |
135mm |
15 Holes |
2.003.015 |
247mm |
| 9 Holes |
2.003.009 |
151mm |
16 Holes |
2.003.016 |
263mm |
| 10 Holes |
2.003.010 |
167mm |
|
|
|
IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.2.003.004 |
|
|
|
| |
|
| |
|

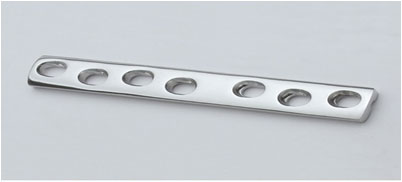

| DCP BROAD PLATE 4.5mm |
|
|
 |
| • |
Thickness |
: |
5.0mm |
| • |
Width |
: |
16.0mm |
| • |
DCP hole |
: |
5.50 x 8.50mm |
| • |
Hole to Hole distance |
: |
16mm |
| • |
Available Material |
: |
S.S.316L / Titanium |
|
|
|
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
| 4 Holes |
2.004.004 |
71mm |
13 Holes |
2.004.013 |
215mm |
| 5 Holes |
2.004.005 |
87mm |
14 Holes |
2.004.014 |
231mm |
| 6 Holes |
2.004.006 |
103mm |
15 Holes |
2.004.015 |
247mm |
| 7 Holes |
2.004.007 |
119mm |
16 Holes |
2.004.016 |
263mm |
| 8 Holes |
2.004.008 |
119mm |
17 Holes |
2.004.017 |
279mm |
| 9 Holes |
2.004.009 |
151mm |
18 Holes |
2.004.018 |
295mm |
| 10 Holes |
2.004.010 |
167mm |
19 Holes |
2.004.019 |
311mm |
| 11 Holes |
2.004.011 |
183mm |
20 Holes |
2.004.020 |
327mm |
| 12 Holes |
2.004.012 |
199mm |
|
|
|
IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.2.003.004 |
|
|
|
| |
|
