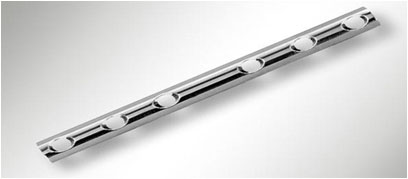

| SEMI TUBULAR PLATE 4.5mm |
|
|
 |
| • |
Thickness |
: |
1.20mm |
| • |
Width |
: |
12.0mm |
| • |
Hole size |
: |
5.40 x 6.80mm |
| • |
Hole to Hole distance |
: |
16mm |
| • |
Available Material |
: |
S.S.316L / Titanium |
|
|
|
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
| 4 Hole |
2.013.004 |
71mm |
9 Holes |
2.013.009 |
151mm |
| 5 Hole |
2.013.005 |
87mm |
10 Holes |
2.013.010 |
167mm |
| 6 Hole |
2.013.006 |
103mm |
11 Holes |
2.013.011 |
183mm |
| 7 Hole |
2.013.007 |
119mm |
12 Holes |
2.013.012 |
199mm |
| 8 Hole |
2.013.008 |
135mm |
|
|
|
IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.2.013.004 |
|
|
|
| |
| |
|
