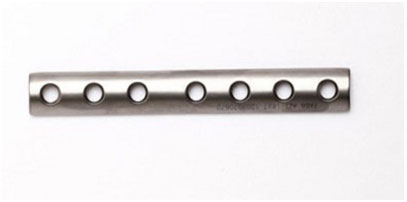

| ONE THIRD TUBULAR PLATE 3.50mm |
|
|
 |
| • |
Thickness |
: |
1.0mm |
| • |
Width |
: |
9.0mm |
| • |
Hole size |
: |
4.25 x 5.25mm |
| • |
Hole to Hole distance |
: |
12mm |
| • |
Available Material |
: |
S.S.316L / Titanium |
|
|
|
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
| 4 Hole |
2.011.004 |
52mm |
9 Holes |
2.011.009 |
112mm |
| 5 Hole |
2.011.005 |
64mm |
10 Holes |
2.011.010 |
124mm |
| 6 Hole |
2.011.006 |
76mm |
11 Holes |
2.011.011 |
136mm |
| 7 Hole |
2.011.007 |
88mm |
12 Holes |
2.011.012 |
148mm |
| 8 Hole |
2.011.008 |
100mm |
|
|
|
IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.2.011.004 |
|
|
|
| |
|
| |
|

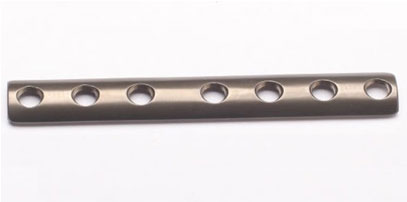

| LOCKING ONE THIRD TUBULAR PLATE 3.50mm |
|
|
 |
| • |
Thickness |
: |
1.50mm |
| • |
Width |
: |
9.0mm |
| • |
Locking Hole Dia |
: |
4.30mm |
| • |
Supporting Hole Dia |
: |
4.50mm |
| • |
Hole to Hole distance |
|
12mm |
| • |
Available Material |
: |
S.S.316L / Titanium |
|
|
|
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
| 4 Hole |
2.012.004 |
52mm |
9 Holes |
2.012.009 |
112mm |
| 5 Hole |
2.012.005 |
64mm |
10 Holes |
2.012.010 |
124mm |
| 6 Hole |
2.012.006 |
76mm |
11 Holes |
2.012.011 |
136mm |
| 7 Hole |
2.012.007 |
88mm |
12 Holes |
2.012.012 |
148mm |
| 8 Hole |
2.012.008 |
100mm |
|
|
|
IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.2.012.004 |
|
|
|
| |
|
