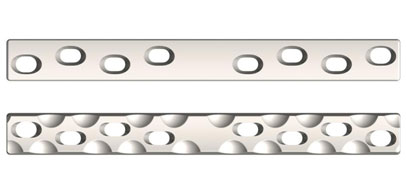

| LC- DCP BROAD PLATE 4.5mm |
|
|
 |
| • |
Thickness |
: |
6.0mm |
| • |
Width |
: |
17.50mm |
| • |
DCP hole |
: |
5.50 x 8.50mm |
| • |
Hole to Hole distance |
: |
18mm |
| • |
Available Material |
: |
S.S.316L / Titanium |
|
|
|
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
| 4 Hole |
2.007.004 |
70mm |
12 Hole |
2.007.012 |
214mm |
| 5 Hole |
2.007.005 |
88mm |
13 Hole |
2.007.013 |
232mm |
| 6 Hole |
2.007.006 |
106mm |
14 Hole |
2.007.014 |
250mm |
| 7 Hole |
2.007.007 |
124mm |
15 Hole |
2.007.015 |
268mm |
| 8 Hole |
2.007.008 |
142mm |
16 Hole |
2.007.016 |
286mm |
| 9 Hole |
2.007.009 |
160mm |
17 Hole |
2.007.017 |
304mm |
| 10 Hole |
2.007.010 |
178mm |
18 Hole |
2.007.018 |
322mm |
| 11 Hole |
2.007.011 |
196mm |
|
|
|
IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.2.007.004 |
|
|
|
| |
|
| |
|

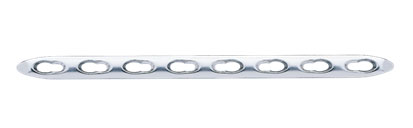

| LOCKING COMPRESSION SMALL PLATE 3.50 / 4.0mm |
|
|
 |
| • |
Thickness |
: |
3.50mm |
| • |
Width |
: |
10.0mm |
| • |
Locking Hole Dia |
: |
4.20mm |
| • |
Supporting Hole Dia |
: |
4.50mm |
| • |
Hole to Hole distance |
|
13mm |
| • |
Available Material |
: |
S.S.316L / Titanium |
|
|
|
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
| 4 Holes |
2.008.004 |
59mm |
9 Hole |
2.008.009 |
124mm |
| 5 Holes |
2.008.005 |
72mm |
10 Hole |
2.008.010 |
137mm |
| 6 Holes |
2.008.006 |
85mm |
11 Hole |
2.008.011 |
150mm |
| 7 Holes |
2.008.007 |
98mm |
12 Hole |
2.008.012 |
163mm |
| 8 Holes |
2.008.008 |
111mm |
|
|
|
IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.2.008.004 |
|
|
|
| |
|
