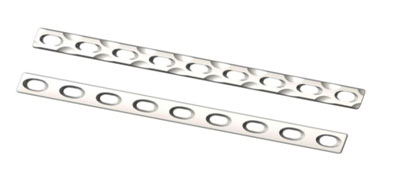

| LC-DCP SMALL PLATE 3.50mm |
|
|
 |
| • |
Thickness |
: |
4.0mm |
| • |
Width |
: |
11.0mm |
| • |
DCP hole |
: |
4.50 x 7.0mm |
| • |
Hole to Hole distance |
: |
13mm |
| • |
Available Material |
: |
S.S.316L /Titanium |
|
|
|
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
| 2 Holes |
2.005.002 |
25mm |
8 Holes |
2.005.008 |
103mm |
| 3 Holes |
2.005.003 |
38mm |
9 Holes |
2.005.009 |
116mm |
| 4 Holes |
2.005.004 |
51mm |
10 Holes |
2.005.010 |
129mm |
| 5 Holes |
2.005.005 |
64mm |
11 Holes |
2.005.011 |
142mm |
| 6 Holes |
2.005.006 |
77mm |
12 Holes |
2.005.012 |
155mm |
| 7 Holes |
2.005.007 |
90mm |
|
|
|
IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.2.005.002 |
|
|
|
| |
|
| |
|
| LC-DCP NARROW PLATE 4.5mm |
|
|
 |
| • |
Thickness |
: |
4.50mm |
| • |
Width |
: |
13.50mm |
| • |
DCP hole |
: |
5.50 x 8.50mm |
| • |
Hole to Hole distance |
: |
18mm |
| • |
Available Material |
: |
S.S.316L / Titanium |
|
|
|
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
| 4 Holes |
2.006.004 |
70mm |
11 Hole |
2.006.011 |
196mm |
| 5 Holes |
2.006.005 |
88mm |
12 Hole |
2.006.012 |
214mm |
| 6 Holes |
2.006.006 |
106mm |
13 Hole |
2.006.013 |
232mm |
| 7 Holes |
2.006.007 |
124mm |
14 Hole |
2.006.014 |
250mm |
| 8 Holes |
2.006.008 |
142mm |
15 Hole |
2.006.015 |
268mm |
| 9 Holes |
2.006.009 |
160mm |
16 Hole |
2.006.016 |
286mm |
| 10 Holes |
2.006.010 |
178mm |
|
|
|
IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.2.006.004 |
|
|
|
| |
|
